NTS100
Compact Time Server
- Mô tả Specs Details Overview Components Packages Resources Additional Modules Complementary products Architecture Tools Benefits Features Customer Ordering
- Thông số Specs Details Overview Components Packages Resources Additional Modules Complementary products Architecture Tools Benefits Features Customer Ordering
- Tài liệu Specs Details Overview Components Packages Resources Additional Modules Complementary products Architecture Tools Benefits Features Customer Ordering
The NTS100 is a compact Single Port NTP and/or PTP (IEEE1588 v2) Time Server that provides secure, accurate and reliable timing references for synchronizing enterprise networks. In addition to robustness, features such as remote configuration, enhanced security, and capability to act as a PTP Grandmaster Clock, make the NTS100 a versatile synchronization solution for a wide range of network applications.
Key Features:
- Single RJ45 port
- Local configuration USB Port
- PTP (IEEE 1588v2) Master/Slave function
- UTC & LST with user defined DST options
- Remote configuration
- Security including password protection, user authentication & data encryption
- Multi level password protection with custom configurable privilege settings
- Complies with 61850-3
Input/Output Signals:
- SNMP v1, v2c & v3
- Proprietary MIB, USM MIB, C37.238 MIB
- NTP/SNTP v3, v4 server operation, and basic SNTP client protocol for testing purposes
- PTP IEEE 1588v2 (Supports Power Profile – C37.238, and Telecom Slave Profile – ITU G.8265.1)
| Physical | |

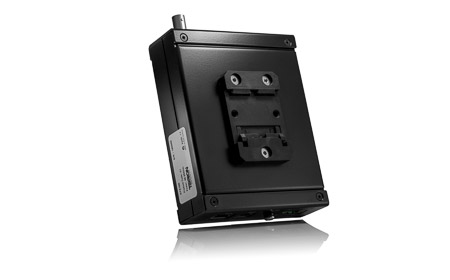

| Design: | Metal DIN-rail mountable case, with IP30 rating |
| Measurements: | (L) 155 mm x (W) 110 mm x (H) 45 mm |
| Weight: | 0.42 kg |
| LED Indicators:
| Three LEDs indicate multiple statuses: – Sync – Alarm – Power |
| GNSS Receiver | |
| L1, C/A code, 32 Channel Parallel-tracking receiver | |
| Frequency: | 1598 Mhz |
| Acquisition (Sensitivity): | – 155 dBm |
| Tracking (Sensitivity): | -160 dBm |
| Oscillator – TCXO | |
| Holdover characteristics operating at 25°C : | – TCXO 1PPS drifts 0.55 ms over a 24 hour period. – Drift rate: 7 ppb per second |
| Inputs & Outputs | |
| Sync indication output: | 200 V, 100 mA (Max) |

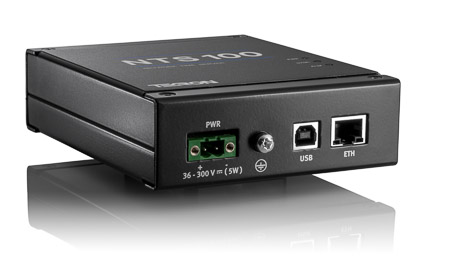

| USB 2.0 local configuration port: | Type B, USB 2.0 |
| RJ45 UTP Connector: | 10/100 Mbps, Auto MDIx |

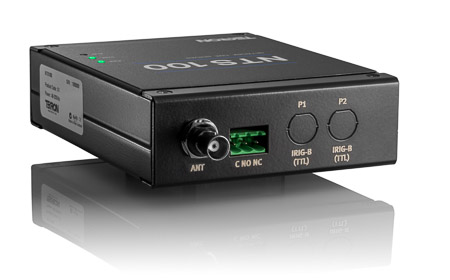

| Antenna connector: | BNC 100 mA drive power |
| Ethernet UTP Connection | |
| Protocols supported: | ARP, UDP, ICMP, TFTP, DHCP, SNMP, and BOOTP |
| NTP/SNTP: | Stratum-1 NTP & SNTP time server, Multicast & Broadcast server capability, Optional MD5 authentication Timing Accuracy: <100 ns to UTC |
| PTP (IEEE1588 v2) | – GrandMaster – Slave Default – Power Profile (Full) – C37.238 – Telecom Slave Profile – ITU G.8265.1 – 1-step/ 2-step – Layer 2 or Layer 3 – Peer to Peer delay – End to End delay – Multicast operation – Accuracy <100 ns to UTC |
| SNMP | – v1, v2c & v3 support can be independently enabled – Configurable v1, v2c community names & security groups – Fully configurable via SNMP – v3 User-based Security Module (USM) support – USM MIB support |
| USM authentication methods | – MD5 – SHA |
| USM privacy methods | – DES – AES |
| Notifications | – SNMP trap generation v1, v2c & v3 – SNMPv3 traps can be authenticated |
| Upgrades | Remote upgrades supported via Ethernet port |
| Isolation | |
| Power to Antenna | 3.75 kV |
| Power to I/O | 3.75 kV |
| Environmental & Electrical | |
| Power supply | 48-250 Vdc (wide range supply) |
| Power drain | 5 W max |
| Operating temperature | -40 to +85 C |
| Humidity | 95% non-condensing |
| Compliance | |
| The NTS100 passes the following tests: Applicable council directive according to: – CE Compliance Low voltage directive EN60950-1 – EMC Directive EN61000-6-2, EN61000-6-4 – C22.2 No. 60950-1 | |
| Programmability | |
| Customization is achieved using the windows based Tekron Configuration Tool, which is accessed via Ethernet/USB, allowing remote configuration. | |
| User adjustable features include: | – Multi-level access control – Privacy & authentication methods equivalent to SNMP USM – “Supervisor-mode” prevents non-approved changes |
| Timing & Synchronization: | Worldwide daylight savings & local time configuration using either rule based or fixed date methods. Options that allow equipment checks prior to full installation and adjustable hold-over times to increase reliability in the case of poor GPS coverage. Adjustments to compensate for installation parameters such as delay of GPS signal through antenna cable. |
