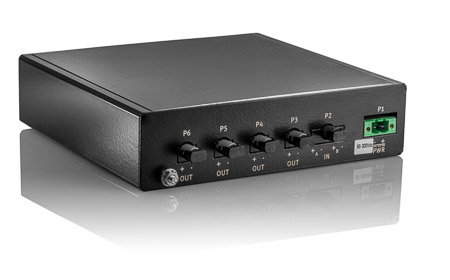

ITD
Isolated Timing Distributor
- Mô tả Specs Details Overview Components Packages Resources Additional Modules Complementary products Architecture Tools Benefits Features Customer Ordering
- Thông số Specs Details Overview Components Packages Resources Additional Modules Complementary products Architecture Tools Benefits Features Customer Ordering
The Isolated Timing Distributor provides a simple method to reticulate unmodulated IRIG-B between rooms and/or rows of substation panels while maintaining electrical isolation. The device receives TTL HCMOS or fiber signals and regenerates simultaneously on four channels over either TTL or fiber. Balanced and isolated inputs and outputs provide excellent noise immunity.
Key Features:
- Extend the distance of an IRIG-B or Pulse signal
- Provide isolation between A & B Protection Systems or between IEDs
- Reduces wiring to panels of equipment
Input/Output Signals:
- Copper input
- Fiber input
- Fiber output
- TTL output
| Physical | |
| Design: | Takes up ½ of a 1U rack-mount bracket designed for 19 inch cabinets. A 1U 19” rack mount is included with every clock. IP40 (Ingress Protection rating) |
| Measurements: | (W) 160 mm x (D) 155 mm x (H) 40 mm |
| Weight: | 0.8 Kg |
| Outputs copper version | |
| 4 x Copper TTL: | TTL 0-5 V, 150 mA, fused (2-pin) |
| Outputs fiber version | |
| 4 x ST fiber | Fiber TX (62.5/125 um, λ 820 nm), compatible with multi-mode fiber over ST Fiber connectors |
| Inputs copper version | |
| 1 x Copper (2-pin): | 5 V, 2 mA max TTL compatible/HCMOS High logic minimum threshold 2.5 Vdc, Maximum Voltage 14 V
|
| 1 x Fiber RX (ST): | 62.5/125 um, λ = 820 nm, multi-mode Receiver sensitivity -34.4 dBm |
| Internal signal delay | |
| TTL in to TTL out: | 125 +/- 10 ns |
| TTL in to Fiber out: | 75 +/- 10 ns |
| Fiber in to Fiber out: | 65 +/- 10 ns |
| Fiber in to TTL out: | 110 +/- 10 ns |
| Power supply options | |
| Low: | 14 – 36 Vdc (2 pin) |
| Medium: | 20 – 75 Vdc (2 pin) |
| High: | 90 – 300 Vdc (2 pin) |
| Power rating: | 5 W max |
| Environmental | |
| Operating temperature: | -10°C to +65°C |
| Humidity: | 10 to 95% RH (non condensing) |
| Isolation | |
| Power to IO (LV/MV DC power): | 5 kVdc |
| Power to IO (HV DC/AC power): | 5 kVac |
| Power to Earth (LV/MV DC Power): | 2 kVdc |
| Power to Earth (HV DC/AC Power): | 3 kVac |
| Input to Earth: | 3.5 kVac |
| Output to Earth: | 3 kVdc |
