Elipse Power provides an integrated communication, modelling, and analyses environment, comprising a modern EMS (Energy Management System)/ADMS (Advanced Distribution Management System) applicable to operational systems for generation, transmission, and distribution in large industrial plants. With its integrated architecture, Elipse Power allows you to easily access all information required for operating power networks, thus increasing your project’s efficiency and reducing its operational costs.

ELIPSE POWER HMI

Elipse Power HMI has special features for developing substation applications, providing local operation and remote access to the control center, while also working as a protocol gateway. Also is a powerful tool for modeling the electrical system, automatically generating SCADA’s operation screens, providing a more reliable and secure system configuration and operation. An intuitive interface, as well as special electrical features like topology processor and command interlocks, deliver security and ease-of-use when operating the system.

This single tool for system configuration works as a universal development platform. Its modern, friendly environment includes an electric CAD for modelling the system and standardizing measurements, a tool for automatically creating operation diagrams, and data structure based on IEC 61970 (CIM) standard. Projects can be edited by different users simultaneously for team-work purposes.



FEATURES

Electrical System Model

It is designed using an integrated Power CAD Editor that automatically generates operation diagrams and equipment structure based on IEC 61970 (CIM) standard.

Topology Processor

The topology processor algorithm running over the electrical model automatically animates operation diagrams with no need for programming. This algorithm identifies the substation’s different voltage levels via customized colors and also signals energized and de-energized branches.

Screen Import

Automatically generates all the operation’s single-line diagrams.

TagBrowser

Automatically imports tags from the IEDs via IEC 61850, drastically reducing configuration time when setting communication tags.

Templates

Allow configuring command types, measurements and colors in a unique interface for all system devices.

Gateway

A unified interface for configuring HMI and gateway reduces engineering and commissioning costs. In addition to working as an HMI (human-machine interface), it can also work as a communication getaway, converting protocols and sending data to another control center, for example.

Protocols

Protocols available: IEC 61850, IEC 60870-5-101/102/103/104, DNP3, ICCP, among others.

BENEFITS

  • Reduced engineering and maintenance costs
  • Reduced commissioning costs
  • Provides a secure and reliable operation with consistent information
  • Preserves previous costs due to being easily integrated to any type of protocol or legacy device

LICENSING

Substations 1
Viewers 1
Drivers* n
I/O points 100 to 10,000
Storage 100 to 10,000
Hot-Standby Yes (optional)
Viewers-Only 1 (optional)
Additional modules N/A

*I/O drivers are purchased separately, according to the product’s needs, and added to Elipse Power HMI’s license.
For larger systems, we recommend using Elipse Power Industry.

ELIPSE POWER INDUSTRY

Energy-intensive industries require robust supervisory control systems for power assets management. Any interruptions on an industrial system may imply in reprocessing the entire production or even in wasting a great amount of raw material, which would cause massive financial losses. Elipse Power Industry increases the energy supply’s availability, quality, and reliability, which are crucial factors to industries planning to operate their plants more efficiently, thus reducing losses and costs.

Elipse Power Industry is a platform with tailor-made features for creating comprehensive control centers, in industries and plants with massive use of energy, providing centralized execution and remote access to local operation points. It allows developing applications that are able to manage and control a great number of substations and communication points.

The electrical systems modeling tool allows automatically generating the SCADA operating screens and adding/editing elements in order to reduce configuration and commissioning time, in addition to making the system safer and more reliable.

Features

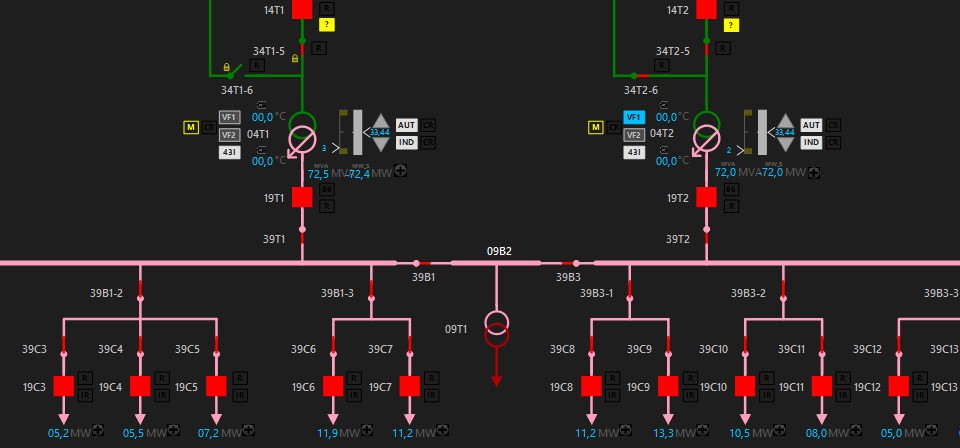

  • Based on the IEC 61970 (CIM) standard, the system’s electrical template is set up via an integrated graphic interface that automatically generates the operation’s single-line diagrams
  • Topology Processor: based on the electrical template, this algorithm allows animating single-line diagrams automatically, with no programming required
  • Tag Browser: imports tags directly from IEDs via IEC 61850, thus dramatically reducing possible errors and configuration time
  • Templates: allow setting up all types of commands, measurements, and colors in a single environment for all devices in the system
  • Hot-Standby architecture: automatically switches between available servers
  • Supervises and controls a great number of substations and communication points
  • Available protocols: IEC 61850, IEC 60870- 5-101/102/103/104, DNP3, ICCP, among others

Benefits

  • Reduced engineering and maintenance costs
  • Reduced configuration and commissioning time/costs
  • High reliability and availability guaranteed
  • Interfaces display consistent data, which prevents misleading operations
  • Easily integrated with other pre-existing systems, such as SCADA/DCS, thus preserving previous investments

Licensing

Substations n
Viewers 1 to 4
Drivers n
I/O points 10,000 to 60,000
Storage 10,000 to 60,000
Hot-Standby Yes (optional)
Viewers-Only n (optional)
Additional modules Load Shedding (optional)

ELIPSE POWER ADMS

A platform for distribution network management, focused on the increase of productivity and efficiency, optimizing and controlling the network assets. The network’s electric modeling, based on IEC 61970 – CIM standard, guarantees shorter configuration, maintenance, and commissioning times, in addition to easier integration with existing corporate systems, such as GIS (Geographic Information Systems) and OMS (Outage Management Systems).

Smart modules, such as Self-Healing and Schematic View, complement this solution by supporting the decision-making process and improving maneuver and switching times.



Features

  • Self-Healing module: automatically reconfigures the distribution network to supply as much customers as possible, minimizing the impact of an energy fault
  • Schematic View module: automatically generates simplified views that makes it easier to understand the network topology, leading to quicker, more assertive operations
  • GIS import/synchronism tool: enables a unique registry for each device, ensuring information integrity and reduction of maintenance costs
  • Multiprotocol platform: allows integrating several distribution IEDs, taking full advantage of pre-existing legacy systems and devices
  • Topology Processor: a ready-to-use algorithm applied to operation diagrams. Performs the line coloring dynamically, enabling the operator to analyze which circuit paths are energized or not
  • Reliable electric registry: integration with other enterprise systems (GIS, OMS) ensures a safer operation, by reducing the chance of human errors in the configuration time

Benefits

  • Improved reliability indicators (e.g. SAIDI, SAIFI, CAIDI)
  • Reduced operational costs in field crews
  • Low cost for maintaining and integrating to other systems
  • Preserves earlier hardware investments
  • Enhanced operational security

Licensing

Substations n
Feeders n
Viewers n
Drivers* n
I/O points 5,000 to 100,000
Storage 5,000 to 100,000
Hot-Standby Yes (optional)
Viewers-Only n (optional)
Additional modules Self-healing, State Estimator

ELIPSE POWER EMS

Utilities face huge challenges in their quest for greater efficiency of processes and improving the quality of supply. Asset management, field teams’ optimization, integration with external systems, are some of them. Elipse Power EMS ensures the most efficient use of assets, reducing operating costs and improving quality indicators.

Elipse Power EMS is a platform for transmission and sub-transmission grids management, which allows controlling and optimizing the main active assets. It offers tools that bring ease and flexibility in the development of large applications for control centers with the ability to control and manage a large number of substations and communication points.

By using electric intelligence modules, Elipse Power EMS becomes an important tool for the decision-making process, thus ensuring a secure, efficient operation and continual improvement in the supply’s reliability indexes (e.g. SAIFI, SAIDI). Based on a fully redundant client-server architecture, with distributed processing and support to all communication protocols used in the electric system, this is the ideal solution for transmission and sub-transmission control centers.




Features

  • Electric system model compatible with IEC 61970 – Common Information Model (CIM) standard
  • Self-healing module: applied to the high-voltage system, it automatically restores the service in case of outage
  • State Estimator Module: inaccurate or missing measurements are spotted and fixed
  • Load Relief Module: smart load relief management and control
  • Operator Training System (OTS): a SCADA-integrated environment for simulating maneuvers impact
  • Creating, editing, and running maneuver procedures
  • Maneuver impact simulation environment integrated to SCADA
  • Easily integrated with regulatory companies’ systems and other control centers via ICCP
  • Long-term historian to help the operators’ decisions, and a post-operational tool for analysis and auditing

Benefits

  • Reduced engineering and maintenance costs
  • Reduced commissioning costs
  • Interoperability with devices from different vendors, which reduces the initial investment as well as costs for the system’s reposition and expansion
  • Shorter recovery time in case of energy outage
  • Improved operative security

Licensing

Substations n
Viewers n
Drivers* n
I/O points Over 60,000
Storage Over 60,000
Hot-Standby Yes (optional)
Viewers-Only n (optional)
Additional modules Self-healing, State Estimator (optional)

ELIPSE POWER WIND

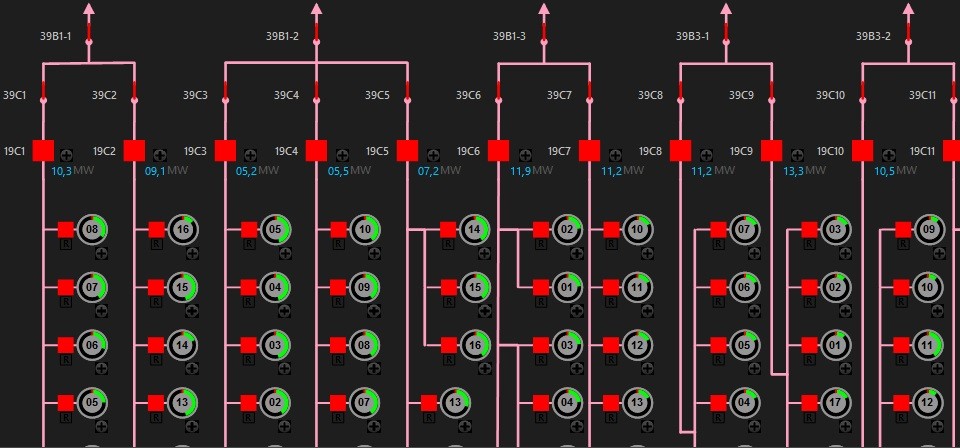

Elipse Power Wind is a platform for automating and managing wind farms, and it can integrate all and every turbines’ and IEDs’ manufacturers used in the substations into a single hub. This solution features a standardized modelling tool for wind turbines that strengthen reliability of data in the auditing process, and thus reduces financial losses in contracts with vendors.

 Auxillary modules may be added to the platform, such as Submodule library 2.7 for sending data to the ONS, and the Disturbance library for visualizing and analyzing any disturbances generated by the wind turbine’s protections. All modules are integrated into a single operating interface, which increases efficiency and operational security.

Features

  • Single platform for correlating substation’s and generation’s events: improves stopping events

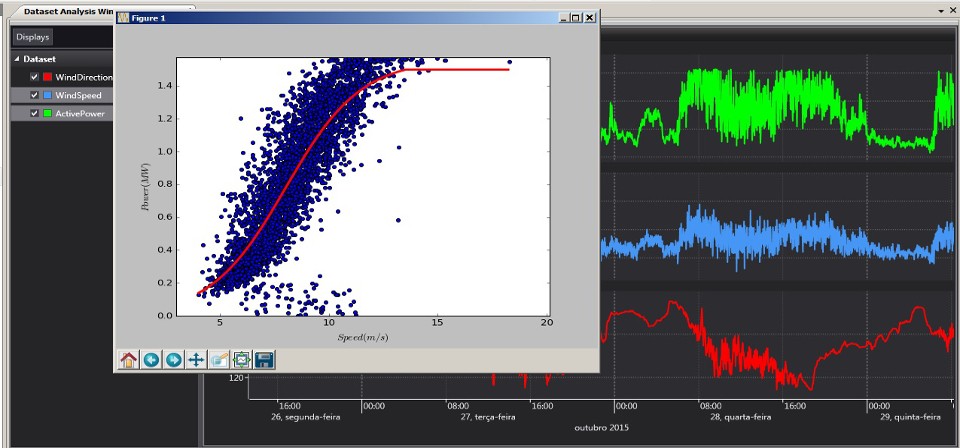

  • Oscillograph analysis tool: improves protection settings, reduces the number of undue stops, enhances wind turbines’ availability indexes
  • Extensive communication drivers’ basis: allows interaction with all and every manufacturers
  • Submodule library 2.7 for sending data to regulatory agencies: implements a logic grouping of events, facilitates integrations, reduces regulatory fines and the number of man-hours needed
  • Standardized reports templates: reduce engineering time, increase reliability
  • Historic database: supports your decisions on future investments

Benefits

  • Improves wind turbines’ availability
  • Reduces financial losses in contracts with vendors
  • Farms operations are safer, more efficient
  • Regulatory risks (fines) are mitigated
  • Shorter engineering and implementation time
  • Decision-making process for new investments is more precise
