UPA-10

Automatic circuit breaker tester up to 10 kA

11

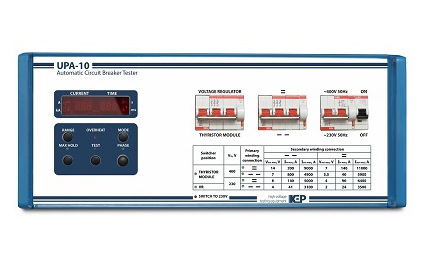

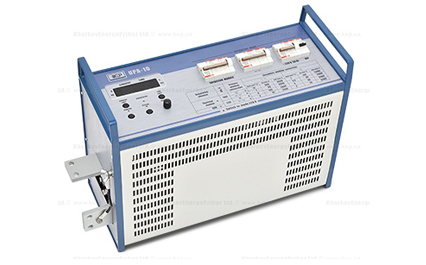

Automatic circuit breaker tester UPA-10 is designed for testing and ampere-second characterization of automatic AC current circuit breakers. The device allows registering the value of the supplied current and timing the automatic circuit breaker switching interval.

Primary current injection UPA-10 is a mobile device, which could be easily transported to a required testing location.

Technical Specifications
Parameter
Value
AC power supply voltage, V
380 ± 38 and 220 ± 22
Power supply frequency, Hz
50 ± 1
Maximum output current at AC 220 V (rms), kA
6,4
Maximum output current at AC 380 V (rms), kA
9,99
Measurement range test current, kA
1 … 9,99
Measurement range test current, A
100 … 999
Range of measurement time for the test current, s
1 … 999
Range of measurement time for the test current, ms
50 … 990
Reduced measurement error of the test current, %, max
3
Absolute error of the current flowing time and the switching off time measurement in the range from 50 ms to 990 ms, ms, max
20
Reduced error of the current flowing time and the switching off time measurement in the range from 1 s to 7200 s, %, max
3
Continuous operation time at maximum current, min, s
30
Highest power consumption, kW, max
55
Weight control unit, kg, max (no flexible busbars)
47
Overall dimensions, mm, max
535×358×200
Lifespan, years, avg
10

  •  Duration of the UPA-10 at different output currents
Output current UPA-10, kA
2,5
5
7,5
10
Voltage, V
220
220
380
380
The inclusion of the primary winding
=
=
The inclusion of the secondary winding
=
=
=
=
Type of busbars: section  × length (mm), insulation
480 * ×2000 silicone
480 * ×2000 silicone
480 * ×2000 silicone
480 * ×2000 silicone
Temperature of the bars when thermothreshold switched off, ˚​​C
62
62
62
65
UPA-10 operating time before thermothreshold switched off
420
100
68
 36
  • * – 4 busbars cross-section 120 mm2
Package Contents
Component
Quantity
UPA-10 control unit
1
Flexible busbar with cross-section 110 mm2 (length 1 m)
8
RNO connection outlet
1
RNO (Inom = 80 A)
Optional*
Cable for connecting RNO to UPA-10
Optional
Documentation
User’s Manual
1
  • * Delivery terms of RNO are discussed separately.
