Polish manufacturer of measuring instruments introduces the new high level cameras with many usable features, matched with a wide variety of IR lenses. A fully radiometric, high resolution cameras which records temperature at each point of the image. This cameras
make shooting professional IR images fast and easy as never before. Everything closed in a durable, water and dust proof casing, small size and low weight. Can you expect more? Yes, and Sonel gives you more. More features, options and functions (compass, GPS, IR analysing functions, Wi-Fi reports printing, others). Additional we offer you fully free, professional but intuitive software for image editing and reports creating. You need only to enjoy the quality, professionalism and performance of new Sonel KT series.

  • Visible light digital camera 5MP resolution with LED lamp provides sharp images regardless of lighting conditions
  • 5 inch 720P high resolution LCD touch screen for better image clarity and easy operation

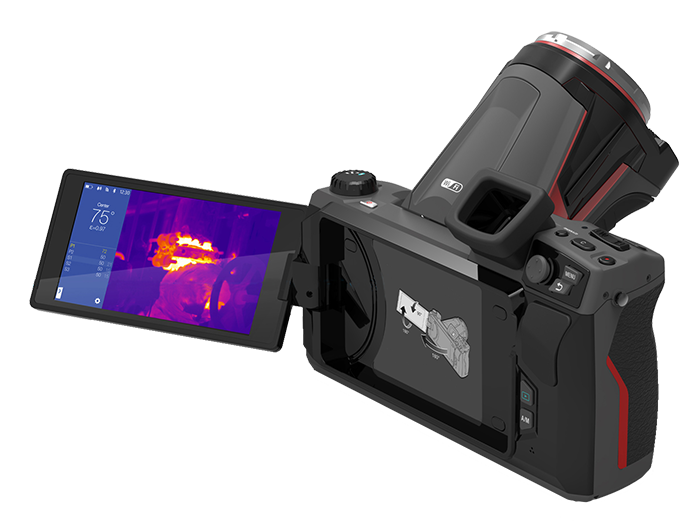

  • Rotating LCD display up to 270″ for easy viewing angle
  • Rotating lens detents up to 70″ for easy viewing angle
  • 4x (10x for plus version) continuous zoom with auto/motorized focus
  • Android based operation system with open platform for various APP developments and convinient program updating
  • Powerful onboard analysis and reporting capabilities
  • Multiple image presentation including IR visible, PIP and IR blending
  • WiFi
  • Optional high temperature range measuring up to 2000oC (3632oF) targeting electrical and industrial applications
  • Optional 11o telephoto or 45o wide angle lens

 KT-560:
Detector400×300
Spectral range8 to14um
NETD50mk
Lens22.6°*17.1o25mm (optional: 42.1°*32.2°/13mm or 10.4°*7.8°/55mm)
LCD5”, 1280×720, HQ touch LCD
Viewfinder1280*960 LCOS screen
Image modeIR image/Visual image/PIP/MIF
Zoom1 to 4x
Measurement RangeFilter 1:  -20°C to 150°C / -4°F to 302°F
Filter 2: 150°C to 800°C / 302°F to 1472°F
Optional Filter: up to 2000oC / 3632oF
Accuracy±1°C or 1% of reading for Filter 1: -20°C to 150°C
±2°C or 2% of reading for Filter 2 or optional 2000°C Filter: 150°C to 800°C
Image Analysis Modes5 points, 2 lines, 5 polygons; temperature display: min, max, avg; isotherm; dew point; temperature alarm
Palette8
EmissivityAdjustable from 0.01 to 1.00 or from the list of materials
Measurement correctionAdjustable: distance, relative humidity, ambient temperature
File formatJPG or RAW
Notes to picturesVoice note (up to 60s), text, graphical
Reports moduleReports to PDF, printing via WiFi directly from the camera, or via PC
Video file formatH.264 (with temperature info)
Built-in functionsVisual camera 5MP, LED flashlight, GPS, laser pointer, microphon, loudspeaker, digital compass, light sensor
InterfaceWiFi
InterfejsySD card, LAN 1 Gb/s, mini HDMI, micro USB 2.0
PowerLi-ion battery (work time >4 hours), built-in charger, AC adapter 110-230 V, 50/60Hz
Work temperature5°F to 122°F / -15°C to 50°C
Storage temperature-40°F to 158°F / -40°C to 70°C
Humidity10% to 95%
Shock / vibration25G, IEC 60068-2-29/ 2G, IEC 60068-2-6
CasingIP54
Weight2.9 lbs / 1.3 kg (with battery)
