Introduction
DA-920E is a 2U rackmount fanless industrial server built for harsh environments, virtualized protection, automation, and control (vPAC), and substation automation. The computer is compliant with IEC 61850-3, IEEE 1613, and IEC 60255 requirements. Powered by Intel® Xeon® D processor with up to 256 GB ECC memory, the DA-920E delivers high-performance, deterministic reliability, and is optimized for virtualization applications. With single or dual wide-range PSUs and RAID storage, the DA-920E ensures reliable computing in modern substations.

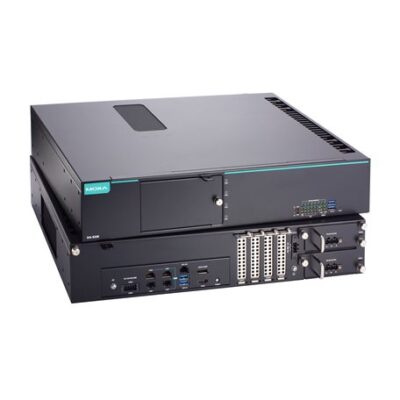

Appearance
Front View
Rear View
Features and Benefits
- IEC 61850-3, IEEE 1613, and IEC 60255 compliant power-automation server
- EN 50121-4 compliant for railway wayside applications
- Intel® Xeon® D-1834 processor
- Up to 256 GB RAM (4 built-in RDIMM DDR4 memory slots)
- 4 SSD slots with Intel® RAID 0/1/5/10 support
- 1 PCIe x16, 1 PCIe x8, and 1 PCIe x4 slots for expansion modules
- Security options such as TPM 2.0, UEFI Secure Boot and physical security
- -25 to 55°C operating temperature
