Introduction
The BXP-C101 Series computer models are built around an Intel® Core™ 3-100U, 5-120U, or 7-150U processor. The computers come with a rich set of interface options including either two serial ports (S1 models) or five digital inputs and six digital outputs (S2 models), two gigabit Ethernet ports, six USB ports, one HDMI port, and one DisplayPort. A dual-storage design that includes CFast and M.2 slots enables easy storage expansion.
The BXP-C101 computers have a compact design and come with wall-mounting kit attached. The computers are fanless enabling them to withstand a temperature range of -30 to 70°C and making them a good fit for harsh operating environments. The built-in TPM 2.0 module secures the platform from unauthorized access. The BXP-C101 is an intelligent computing solution that perfectly fulfills both OT and IT requirements for various industrial environments.
Appearance

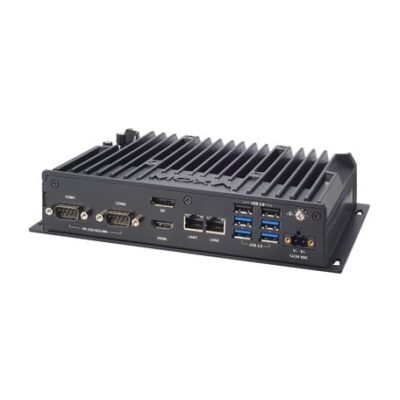

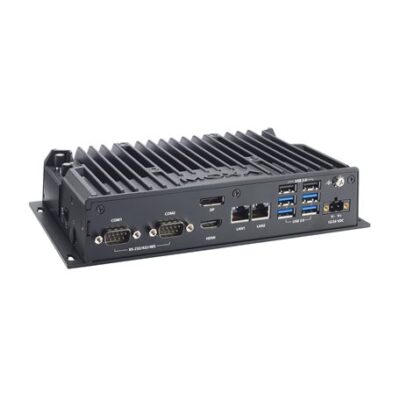

S1 Models (BXP-C101-C3-S1-T/C5-S1-T/C7-S1-T)

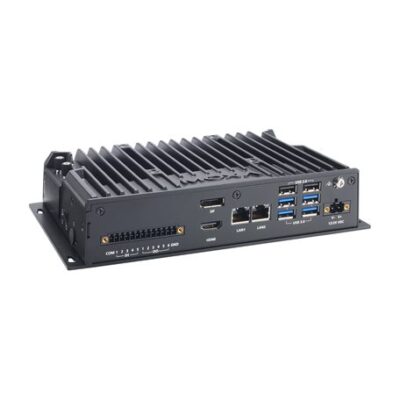

S2 Models (BXP-C101-C3-S2-T/C5-S2-T/C7-S2-T)
Features and Benefits
- Box-type computer with fanless design
- Intel® Core™ Raptor Lake-U Refresh processor
- Compact size to fit most field applications
- Dual storage with a removable cover design for easy maintenance
- -30 to 70°C operating temperature range
