PQM-701Zr
Power quality analyzer
- Mô tả Specs Details Overview Components Packages Resources Additional Modules Complementary products Architecture Tools Benefits Features Customer Ordering
- Thông số Specs Details Overview Components Packages Resources Additional Modules Complementary products Architecture Tools Benefits Features Customer Ordering

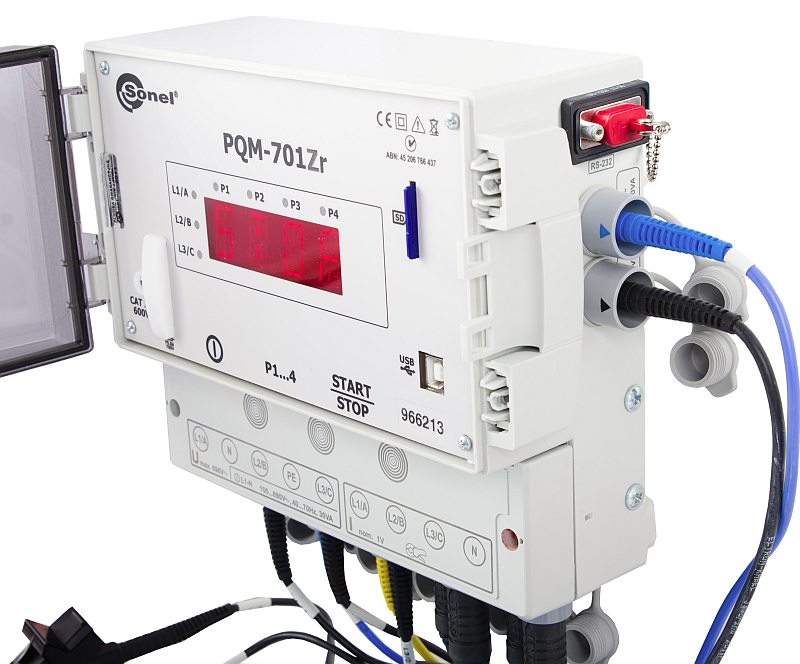

Has an independent power supply socket and an additional RS-232 interface to control a GPRS modem.
ANALYZER MEASURES AND RECORDS ACCORDING TO THE EN 61000 – 4-30 CLASS-A STANDARD
The device is designed to work with networks with nominal frequency 50/60 Hz.
The device is designed to work with networks with nominal voltage:
- 110/190 V,
- 115/200 V,
- 220/380 V,
- 230/400 V,
- 240/415 V,
- 400/690 V.
The network configuration is set from the computer software.
Supported networks:
- single-phase,
- two-phase with the common N,
- three-phase star with and without N,
- three-phase triangle.
ANALIZER MEASURES AND RECORDS ACCORDING TO THE EN 61000 – 4-30 CLASS-A STANDARD
The device is designed to work with networkswith nominal frequency 50/60 Hz.
The device is designed to work with networks with nominal voltage:
- 110/190 V,
- 115/200 V,
- 220/380 V,
- 230/400 V,
- 240/415 V,
- 400/690 V.
The network configuration is set from he computer software.
Supported networks:
- single-phase,
- two-phase with the common N,
- three-phase star with and without N,
- three-phase triangle.
Possible measurements:
- Measurements according to EN 50160
- Voltage L1, L2, L3, N-PE (five inputs, compiles with EN 61000 – 4-30, class A)
– average, minimum, maximum and instantaneous values, range to 690 V, ability to work with voltage transformers, - Current L1, L2, L3, N (four inputs)
– average, minimum, maximum and instantaneous values, measurement current with range to 3 kA (depends on used clamp), ability to work with current transformers, - Crest factor for voltage and current,
- Frequency from 40 Hz to 70 Hz (compiles with EN 61000 – 4-30, class A),
- Active, reactive, distortion, apparent power, including the type of reactive power (capacitive, inductive),
- Power recording:
– Budeanu method,
– IEEE 1459, - Active, reactive, apparent energy,
- Power factor, cosφ, tgφ,
- K factor (transformer overload caused by the harmonics),
- Up to 50th harmonics for voltage and current (compiles with EN 61000 – 4-7, class I),
- Total Harmonic Distortion (THD) for voltage and current,
- Short-term (PST) and long-term (PLT) flicker (compiles with EN 61000 – 4-15, class A),
- Unballace of Voltage (compiles with EN 61000 – 4-30, class A) and current,
- Voltage dips, swells and interruption registration including oscillograms (compiles with EN 61000 – 4-30, class A),
- Current events registration including oscillograms,
- Current and voltage oscillograms registration after each averaging period.
| Specification | Range | Resolution | Accuracy | |
| AC voltage (TRMS) | – | 0,0…690,0 V | 0,01 % Un | ±0,1% Un |
| Crest Factor | Voltage | 1,00…10,00 (≤1,65 for voltage 690 V) | 0,01 | ±5% |
| Current | 1,00…10,00 (≤3,6 Inom) | 0,01 | ± 5% m.v. | |
| AC current TRMS | – | depends on the clamp* | 0,01 % of nominal range | ±0,1% of nominal range (add clamps accuracy) |
| Frequency | – | 40,00…70,00 Hz | 0,01 Hz | ±0,01 Hz |
| Active, reactive, apparent power and distortion | – | depends of configuration (transformers, clamp) | up to 4 decimal places | depends on configuration (transformers, clamp) |
| Active, reactive apparent energy | – | depends of configuration (transformers, clamp) | up to 4 decimal places | the same as above |
| cosφ and Power Factor (PF) | – | 0,00…1,00 | 0,01 | ±0,03 |
| tgφ | – | 0,00…10,00 | 0,01 | depends on Active and Reactive power accuracy |
| Harmonics | Voltage | same as for AC voltage TRMS | same as for AC voltage TRMS | ±5% Uh for Uh ≥ 1% Un ±0,05% Un for Uh < 1% Un |
| Current | same as for AC current TRMS | same as for AC current TRMS | ± 5% Ih for Ih ≥ 3% In ± 0,15% In for Ih < 3% In | |
| Total Harmonics Distortion | Voltage | 0,0..100,0% | 0,1% | ±5% |
| Current | ±5% | |||
| Harmonics active and reactive power | – | depends on configuration (transformers, clamp) | depends on current and voltage minimum value | – |
| Angle between voltage and current harmonics | – | -180,0…+180,0o | 0,1o | ±(h x 1o) |
| K-Factor | – | 1,0…50,0 | 0,1 | ±10% |
| Flicker | – | 0,20…10,00 | 0,01 | ±5% |
| Unbalance | Voltage and Current | 0,0…20,0% | 0,1% | ±0,15% (absolute error) |
*Clamp F-1/F-2/F-3:0..3000 A (10000 Ap-p) *Clamp C-4: 0..1000 A (3600 Ap-p)*Clamp C-5: 0..1000 A (3600 Ap-p)*Clamp C-6: 0..10 A (36 Ap-p) (without current transformers)
Sonel Analysis 1.0
„SONEL Analysis” software is an application used to work with PQM-701 power quality analyzer. It enables:
- analyzer configuration,
- reading data from the analyzer,
- network parameters check in real time,
- data deleting in the analyzer,
- data presentation in tables,
- data presentation in diagrams,
- data analysis according to EN 50160 or according to user defined conditions,
- independent service of multiple analyzers,
- software upgrade through the Internet.
Analyzer configuration
The software enables configuration of all analyzer’s parameters. The configuraton is made on the PC computer and later transfered to the analyzer. The configuration settings can be stored on hard drive or other data storage devices to be used later.The software enables the configuration of:
- wthe choice of Measurement Points and memory assigment to each Measurement Point,
- analyzer time settings,
- keyboard lock,
- PIN code security,
- averaging time setting,
- choice of current and voltage transformers,
- trigger mode choice (immidiately, after an event or according to the scheduler),
- choice of clamp’s type, setting of additional parameters registration in N and PE channels,
- choice of network type, for which the analyzer will be used.
The analyzer has four independent Measurement Points. Each Measurement Point can be set individually to perform four different types of registration without need to change analyzer’s configuration.
For each Measurement Point the following settings can be made:
- cwheather the analyzer shall work according to EN 50160 or according to user defined conditions,
- for each registration user can define, which network parameters shall be registered,
- for each parameter user can define wheather the analyzer shall register average, minimum, maximum or instantaneous values,
- the limits beyond which the analyzer will record the event can be defined.
Recent data reading
“SONEL Analysis” software enables reading of selected parameters and their graphic presentation in real time.These parameters are measured independently of the registration saved on the memory card. User can check:
- wvoltage and current diagrams (oscilloscope),
- diagrams of voltage and current in time function,
- scope phasor,
- different parameters values,
- harmonics and harmonics’ power.
Data analysis
With “SONEL Analysis” software user can read data stored on the memory card and analyze them. Data from the analyzer can be stored on hard drive and be used later. This feature enables data archiving.
The user can analyze the data from the device.There is a choice of:
- General – all data are shown with dots (Measurements, Events and Oscillograms),
- Measurements – all measured values registered in averaging time are shown with dots (voltage, frequency, etc.),
- Events – all detected events are shown with dots (dips, swells, interruptions, etc.).
